Technical parameters
Outlet diameter: DN25 DN40 DN50 DN80 DN100 DN125
Flow rate: 0~200m3/h Head: ~400m
Required NPSH: 0.5~4 m Temperature: -40~200 °C
Impurity content volume ratio less than 8%
Pressure rating: ~10 MPa Power: ~250KW
Structural features
■ The overall structure is optimized to transport media containing impurities, with single-stage and multi-stage European hydraulic components.

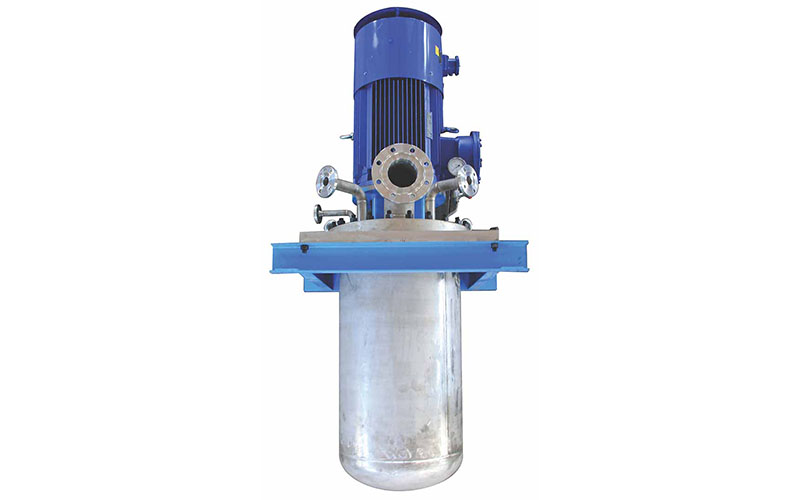

■Vertical structure, equipped with buffer tank, tank height and diameter are determined according to needs, and there are two types of foot tank and straight tank.
■Applicable occasions: The medium inside the container with the bottom opening can be installed and installed above or below the ground.
■Applicable media:
A medium containing a small amount of impurities, toxic, harmful, and easily vaporized.
